Flexidraft™ STAR 10
Product View:

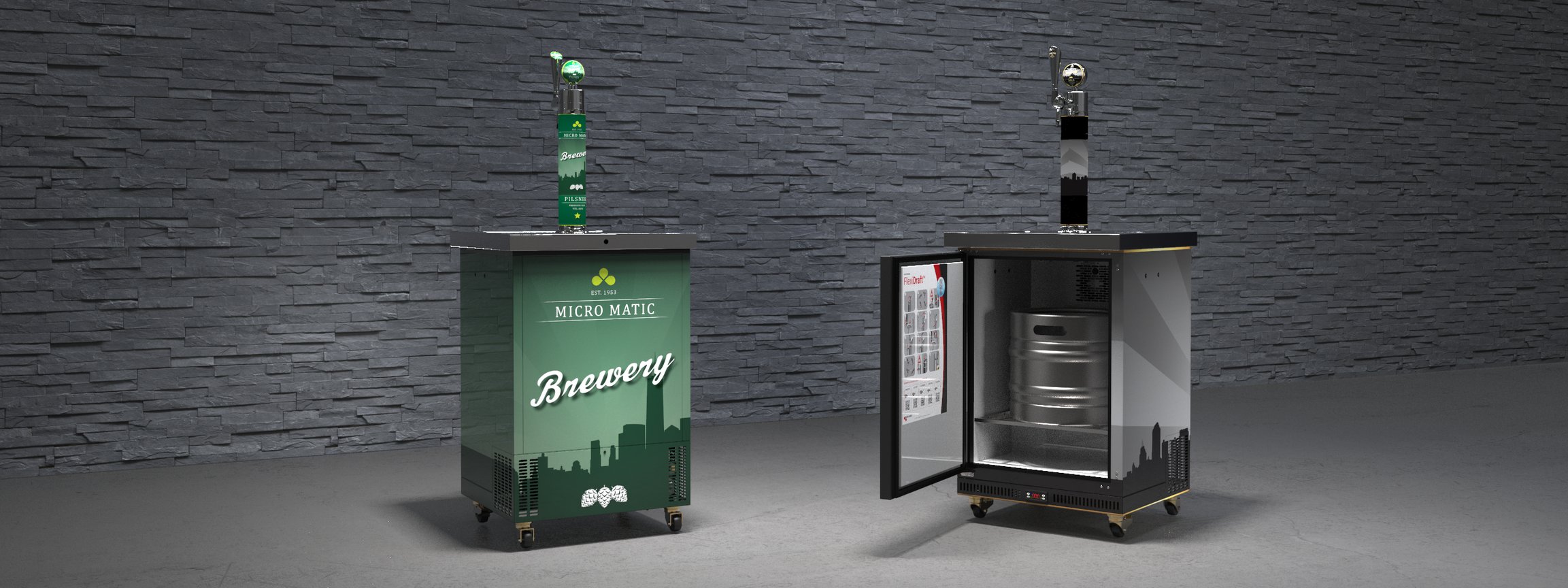

The FlexiDraft™ STAR 10 fridge is developed for Micro Matic specifically to suit the FlexiDraft™ concept.
FlexiDraft™ STAR 10 is a compact integrated solution that combines all the benefits of the FlexiDraft™ CORE fonts with an accurate and energy efficient fridge.
Compelling design and eye-catching brand exposure
The modern design of STAR 10 - made from cleaning-friendly materials - combined with heavy duty hardware ensures years of hassle-free operation, even in the most demanding environment. For easy movement FlexiDraft™ STAR 10 is delivered with wheels with integrated brake function.
The fridge can be wrapped with your stylish design on the 3 visible sides. This gives you great opportunities to create recognizable and compelling marketing messages for your product and brand.
The FlexiDraft™ STAR 10 is easy to install (Plug & Play) and is sized to suit the use of industry standard sized 20- and 30-litre kegs. FlexiDraft™ STAR 10 can be specified with 1 font.

Accessories

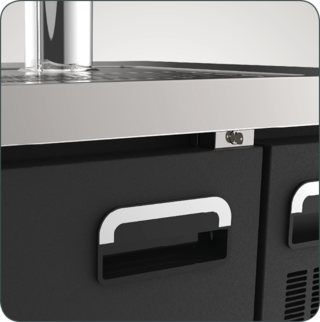

Integrated door lock

In order to prevent unauthorized access to the fridge, the FlexiDraft™ fridges can optionally be equipped with a door lock.

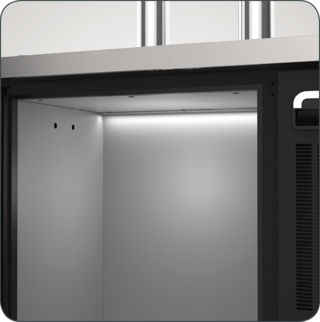

Interior Lighting

All FlexiDraft™ fridges can optionally be supplied with integrated LED interior lighting.
Keg options
Suitable keg Types:

20 L Slim
(Ø235 mm)

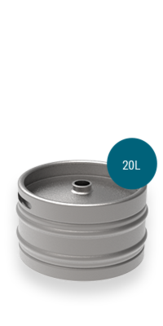

20 L EURO
(Ø408)

30 L EURO
(Ø408 mm)

30 L DIN
(Ø381)
Keg Combinations (examples):






Technical specifications:
FlexiDraft STAR 10 | |
---|---|
Number of fonts | 1 font |
Cooling: | |
Power of compressor | 110V: 491 watt 230V: 406 watt |
Coolant type | R290 |
Coolant amount | 40 g |
Performance: | |
Ambient temperature max. | 35º C |
Cooling temperature | 2º- 4º C |
Electrical: | |
Main supply/ Run current | 110V - 60Hz / 4,3A 230V - 50/60Hz / 2,2A |
Plug compatibility (see world standards) | Type A, B, C, F, G, H, I, J, K, L, M, N, O |
Energy consumption (at 24°C ambient temp.) | 2,2 kWh/24h |
Noise level: | |
Specification | 48-55 db (A), 0,5 m from the cooler |
Dimensions of cooler: | |
Width | Outside: 640 mm Inside: 500 mm |
Depth | Outside: 617 mm Inside: 400/260 mm |
Height | Outside (incl. wheels): 978 mm Inside: 690/540 mm |
Weight | 63 kg |
Wheels | Ø55 mm, h = 87 mm |
Top plate: | |
Brand & type | Stainless Steel AISI 304 with drip tray |
