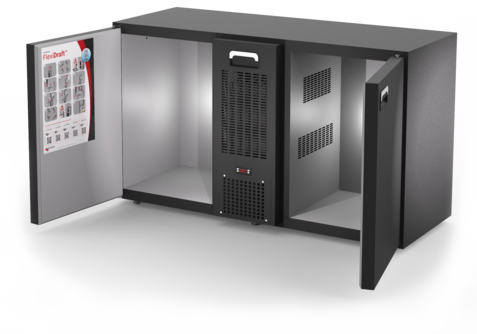

FlexiDraft™ UNDERCOUNTER 40
FlexiDraft™ UNDERCOUNTER 40 is a high-quality undercounter fridge developed for FlexiDraft™.
FlexiDraft™ UNDERCOUNTER 40 is an integrated solution that combines all the benefits of the FlexiDraft™ CORE fonts with an accurate and energy efficient fridge.
Our selections of different fridge sizes are suitable for a wide range of common keg combinations and come with adjustable legs for perfect fitting. The UNDERCOUNTER series come in professional quality and are designed for a sleek and modern look.
All FlexiDraft™ UNDERCOUNTER fridges include pre-drilled holes for external CO2 supply and are available with a range of optional accessories including a keg slider system, interior lighting and door locks.
The FlexiDraft™ UNDERCOUNTER is easy to install (Plug & Play) and is sized to the use of the industry standard sized 20-, 30- and 50-litre kegs. FlexiDraft™ UNDERCOUNTER 40 can be specified with 1-4 fonts.
Accessories
Integrated door lock
In order to prevent unauthorized access to the fridge, the FlexiDraft™ fridges can optionally be equipped with a door lock.
Interior Lighting
All FlexiDraft™ fridges can optionally be supplied with integrated LED interior lighting.
Keg Slider System
Keg Slider System for easy handling of kegs. The keg slider system supports the below keg sizes and ensures ergonomically correct handling of kegs.
Keg options
SUITABLE KEG TYPES:
20 L Slim
(Ø235 mm)
20 L EURO
(Ø408)
20 L EURO
(Stacked)
30 L DIN
(Ø381)
30 L EURO
(Ø408 mm)
50 L EURO
(Ø408 mm)
50 L DIN
(Ø381)

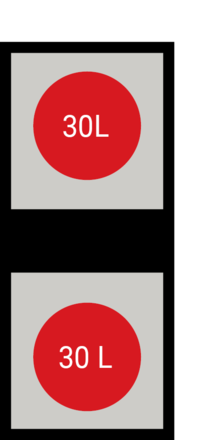

KEG COmbinations (examples):
Technical specifications
| FlexiDraft™ UNDERCOUNTER 40 | |
|---|---|
| Number of fonts | 2-4 fonts |
| Cooling: | |
| Power of compressor | 110V: 854watt 230V: 724 watt |
| Coolant type | R290 |
| Coolant amount | 99 g |
| Performance: | |
| Ambient temperature max. | 40º C |
| Cooling temperature | 2º- 4º C |
| Electrical: | |
| Main supply/ Run current | 110V - 60Hz / 7,8A 220/240V - 50/60Hz / 4,2A |
| Plug compatibility (see world standards) | Type A, B, C, F, G, H, I, J, K, L, M, N, O |
| Energy consumption (at 24°C ambient temp.) | 5,4 kWh/24h |
| Noise level: | |
| Specification | 48-55 db (A), 0,5 m from the cooler |
| Dimensions of cooler: | |
| Width | Outside: 1500 mm Inside: 2 x 500 mm |
| Depth | Outside: 610 mm Inside: 2 x 510 mm |
| Height | Outside: 870-885 mm Inside: 755 mm |
| Weight | 139 kg |
| Legs | Adjustable height 15-30 mm |
