Pneumatic

MATERIALS
Standard pneumatic products are manufactured in Polyamide 11 or 12 which are available in HIPHL, PHL & PHLY grades.Polyamide 1010 is also available upon request

STANDARDS
Tubing is manufactured to DIN 73378, DIN74324* or ISO 7628

TEMPERATURE RANGE
-60°C to +130°C

**For service temperatures above 80°C, tubing should generally be made from heat-ageing stabilised moulding materials. Where tubing is intended to be exposed to direct solar radiation, the addition of carbon black to the moulding material is highly recommended.

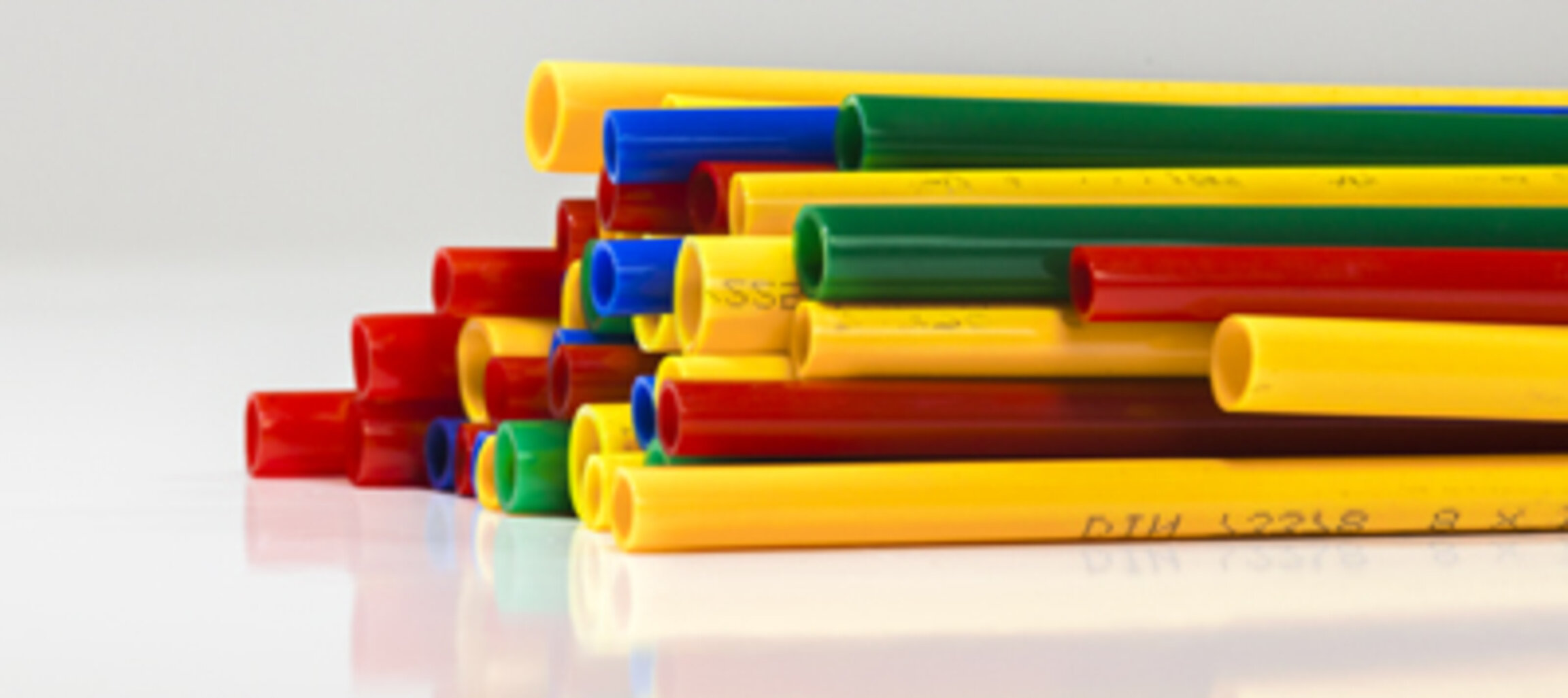

Valpar pneumatic tubing has been designed to meet the needs of the pneumatic control and air carriage applications.

Tubing is manufactured with 100% virgin raw materials containing heat and light stabilisers and providing a superior resistance to oil, abrasion and demonstrates excellent chemical resistance.

Valpar pneumatic tubing can be utilised in ring mains, automation controls, test equipment, air handling units and all other general industrial pneumatic situations.

Please contact us for further information.

* DIN74324 tubing only available in black.
